New Servosila SC-60 brushless motor controllers are now available for purchase.

The new controllers bring up to 45A (30Arms) nominal motor current while sharing the same form factor as the venerable SC-25 controllers, thus providing an in-place upgrade capability
(datasheet).

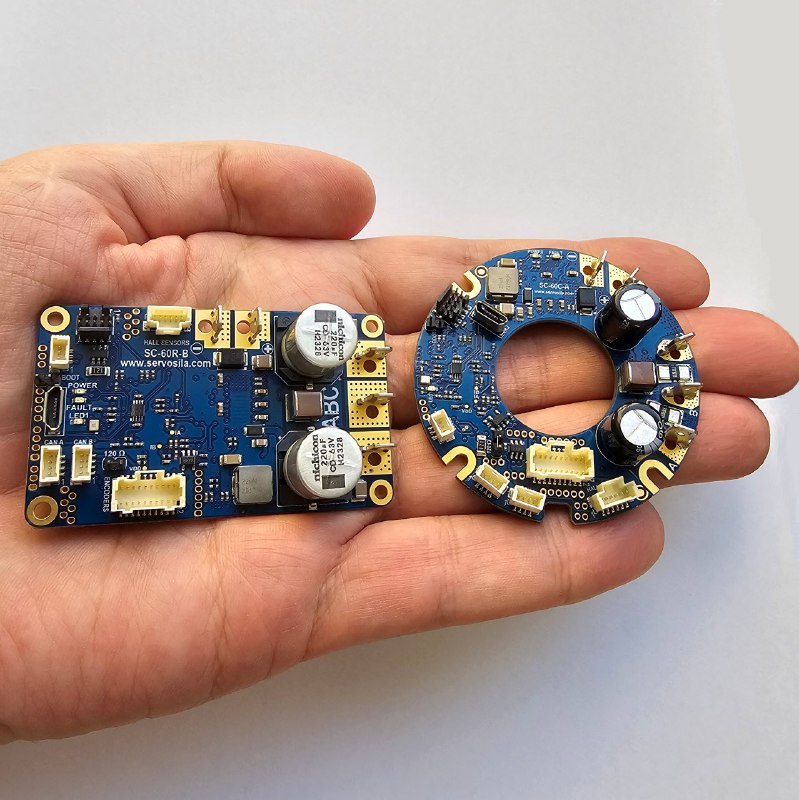

The controllers come in two form factors, a rectangular (SC-60R) and a circular (SC-60C) one. This time, the circular version has a smaller diameter and comes with a central inner diameter specifically designed for passing rotating shafts or cables through the board.

The SC-60 controllers support a wide range of encoder interfaces (BISS/SSI, SPI, Quadrature, PWM) thus making them ideal for actuating powerful high-precision servomechanisms such as robotic arms or sensor pan-tilt-roll mechanisms or traction motors.

The controllers provide an open CAN/CANopen and an open USB control interfaces and come prepackaged with open-source sample software code that utilizes the interfaces directly without using any closed source libraries.

New Servosila SC-60 brushless motor controllers are now available for purchase.

The new controllers bring up to 45A (30Arms) nominal motor current while sharing the same form factor as the venerable SC-25 controllers, thus providing an in-place upgrade capability
(datasheet).

The controllers come in two form factors, a rectangular (SC-60R) and a circular (SC-60C) one. This time, the circular version has a smaller diameter and comes with a central inner diameter specifically designed for passing rotating shafts or cables through the board.

The SC-60 controllers support a wide range of encoder interfaces (BISS/SSI, SPI, Quadrature, PWM) thus making them ideal for actuating powerful high-precision servomechanisms such as robotic arms or sensor pan-tilt-roll mechanisms or traction motors.

The controllers provide an open CAN/CANopen and an open USB control interfaces and come prepackaged with open-source sample software code that utilizes the interfaces directly without using any closed source libraries.
