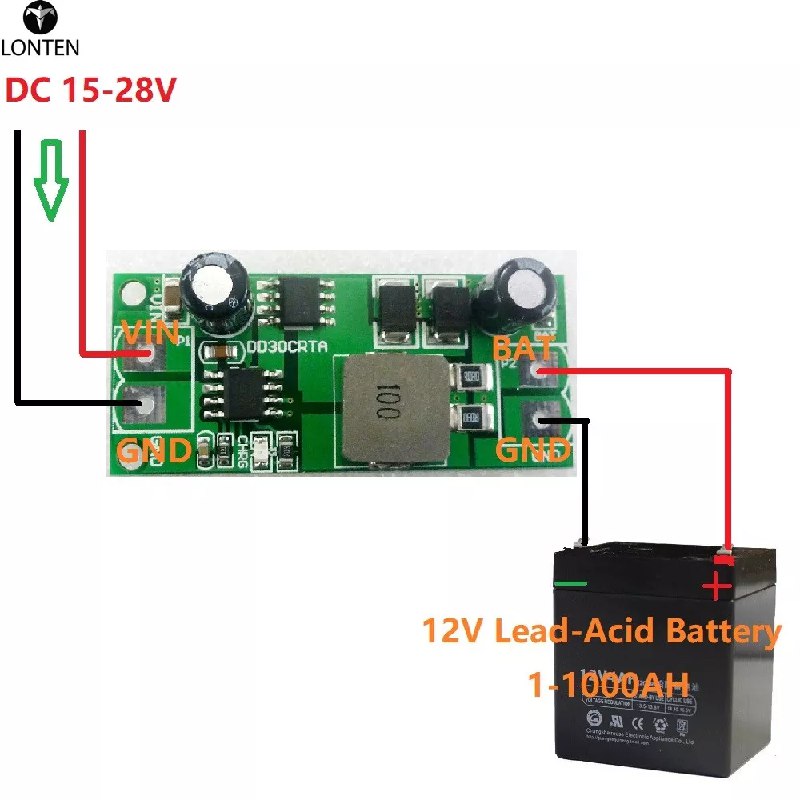

3A 12V 1-1000AH Lead-Acid Battery Charger

Description:

Suitable for 1-1000AH 12V Lead-Acid Battery charger

Power supply voltage : 15-28VDC(Recommended 16-25VDC)
Over Charge Voltage is 14.8V
Float Charge Voltage is 13.55V
Maximum charge current : 3A
Quiescent current: about 1.8mA
High PWM Switching Frequency:300KHz
Fixed Over-Charge Voltage
Overcurrent protection
Automatic Conditioning of Deeply Discharged Batteries
Automatic Recharge
Charger Status Indication
Battery Overvoltage Protection
Operating Ambient Temperature -40℃ to +85℃

Size : 66 x 20x 12mm(with Terminal),66 x 20x 10mm(no Terminal)
Weight : 9g(with Terminal),6g(no Terminal)


Applications:

Car battery charging
Solar battery charging
Mobile Loadspeaker
Lead-Acid Battery Charger
Electric Bicycle Charger
UPS
Portable Industrial and Medical Equipment
Standalone Battery Chargers
